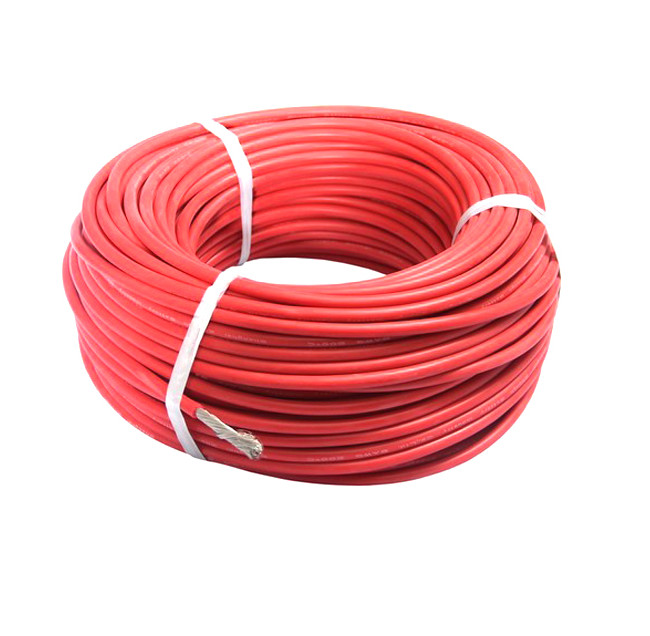

Tinned Copper Flexible Silicone Cable 1AWG 2AWG 4AWG 6AWG 8AWG 10AWG

Supper Flexible Tinned Copper Silicone Cable UL3512 AWM UL 3512 4/0AWG 3/0AWG 2/0AWG 1/0AWG 1AWG 2AWG 4AWG 6AWG 8AWG 10AWG

conductor Size : 7000/0.08TS
Cross Sectional Area : 35mm2
Conductor material : Stranded tinned copper
Insulation Material : Silicone rubber
Rated Voltage : 600V
Temperature Range : -60 deg C to 200 deg C
Overall Diameter : 12mm

Color : Black, Red, White, Yellow, Green, Brown, Customize
Package : Roll

MOQ and Price : Please contact us
Certification
ISO9001, IATF16949:2016, ROHS, SGS, REACH
Shipments
Express, By sea or according to customers requirements

We can also produce wiring harness according to the customers' demands.

We have wiring harness production department, We can provide cut wire, stripping wire, dip tin, terminal wire, male and female plug etc. according to customer's requirement.

Application:

It's widely used in internal wiring of electronic, battery, RC batteries, model wiring, electric appliance and instrument equipment, external wiring of Large transformer, lighting and motor.

• Conductor			Iusulator		Rical Character	Sectional area	Carrying current	packing
  Spe (AWG)	Copper wire shares (compos.NO./mm)	Diameter (mm)	Jacket Thick (mm)	Overall diameter (mm)	Conductor resistance (Ohm/km)	Square millimeter(mm2)	(ampere)	(M/coils)
  30AWG	11/0.08	0.30	0.55	1.20	331.00	0.05	0.80	200.00
  28AWG	16/0.08	0.36	0.55	1.30	227.20	0.08	1.25	200.00
  26AWG	30/0.08	0.46	0.55	1.50	123.00	0.14	3.50	200.00
  24AWG	40/0.08	0.61	0.55	1.60	97.60	0.20	5.00	200.00
  22AWG	60/0.08	0.78	0.55	1.70	88.60	0.33	8.73	200.00
  20AWG	100/0.08	0.92	0.55	1.80	62.50	0.50	13.87	200.00
  18AWG	150/0.08	1.19	0.55	2.30	39.50	0.75	22.00	200.00
  17AWG	210/0.08	1.33	0.80	2.70	21.40	1.00	31.00	200.00
  16AWG	252/0.08	1.53	0.80	3.00	24.40	1.27	35.00	100.00
  15AWG	336/0.08	1.69	0.80	3.10	20.02	1.68	42.00	100.00
  14AWG	400/0.08	1.78	0.90	3.50	15.60	2.07	55.60	100.00
  13AWG	500/0.08	2.06	0.95	4.00	12.50	2.50	65.00	100.00
  12AWG	680/0.08	2.48	1.00	4.50	9.80	3.40	88.40	100.00
  11AWG	800/0.08	2.59	1.00	4.60	7.38	3.96	100.00	100.00
  10AWG	1050/0.08	3.06	1.25	5.50	6.30	5.30	140.60	100.00
  8AWG	1650/0.08	3.75	1.50	6.80	4.20	8.29	200.00	100.00
  6AWG	3430/0.08	5.40	1.30	8.00	1.20	17.23	320.00	50.00
  4AWG	5000/0.08	6.50	1.75	10.50	0.84	25.00	120.00
  2AWG	7000/0.08	8.00	2.00	12.00	0.53	35.00	175.00

•
• Super flexible silicone cable is a high-performance electrical cable that is ideal for use in a wide range of demanding applications. The cable is made from a specially formulated silicone compound that provides exceptional flexibility, excellent resistance to high temperatures, and outstanding insulation properties.
  One of the most notable features of super flexible silicone cable is its flexibility. Compared to other types of cables, it offers a much greater degree of flexibility and can be easily maneuvered into tight spaces or around obstacles. This makes it ideal for applications where space is limited and flexibility is a must.
  In addition to its flexibility, super flexible silicone cable is also highly resistant to high temperatures, making it an excellent choice for use in high-temperature environments. The cable can withstand temperatures up to 200°C, making it ideal for use in harsh industrial settings such as foundries, steel mills, and other high-temperature applications.
  The silicone compound used in the construction of the cable also provides excellent insulation properties, making it ideal for use in electrical and electronic applications. The cable's insulation properties ensure that it can handle high voltages and deliver a reliable performance, even in challenging environments.
  Overall, super flexible silicone cable is a high-performance electrical cable that offers exceptional flexibility, resistance to high temperatures, and outstanding insulation properties. It is an ideal choice for a wide range of demanding applications where flexibility and durability are critical.

• FAQ

  Q1. Can I have a sample order ?

  A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.

  Q2. What about the lead time?

  A:Sample needs 1-3 days, mass production time needs 3-7 days for order quantity more than

  Q3. Do you have any MOQ limit ?

  A: regading formal order, MOQ usually be a roll, that means 50 to100m per roll usually

  Q4. How do you ship the goods ?

  A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.

  Q5. How to proceed an order?

  A: Firstly let us know your requirements or application.

  Secondly We quote according to your requirements or our suggestions.

  Thirdly customer confirms the samples and places deposit for formal order.

  Fourthly We arrange the production.

  Q6. Is it OK to print my logo on cable?

  A: Yes. we accept customized logo printed, just need you to offer your logo file in PDF or AI file,Please inform us formally before our production and confirm the design firstly based on our sample.
