Brand Name : | Hexie |

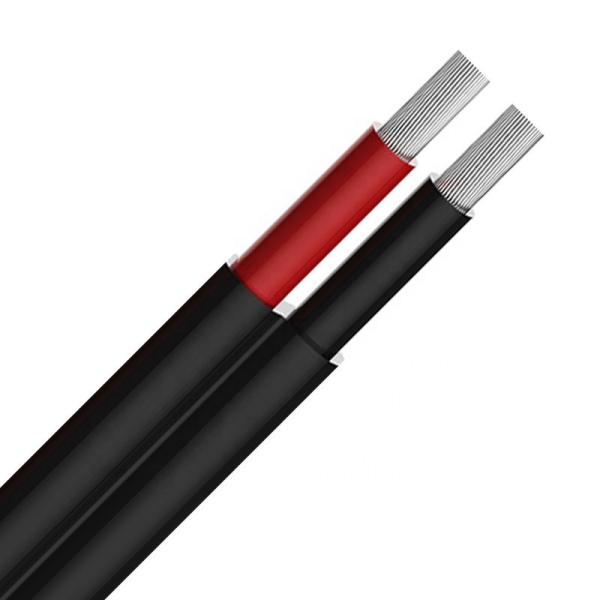

Model Number : | PV Solar Cable 2*10mm² Twin Core |
Certification : | RoHS SGS UL CE TUV IATF16949 ISO9001 |
Price : | USD0.15-1.75 per Piece |
Payment Terms : | T/T, Western Union, MoneyGram,PayPal |
Supply Ability : | 850000Meters per Month |
Delivery Time : | 7-10 work days |
MOQ : | 500meters |
Cross Section (mm²) | Conductor Construction (n/mm) | Conductor OD(mm) | Cable OD(mm) | Insulation Min.Wall Thickness(mm) | Sheath Min.Wall Thickness(mm) | Current Araaing Capacity AT 60°C(A) |
1.5 | TXR30/0.25 | 1.58 | 4.90 | 0.67 | 0.73 | 30 |
2.5 | TXR50/0.25 | 2.02 | 5.45 | 0.67 | 0.73 | 41 |
4 | TXR56/0.30 | 2.60 | 6.10 | 0.67 | 0.73 | 55 |
6 | TXR84/0.30 | 3.42 | 7.20 | 0.8 | 0.80 | 70 |
10 | TXR142/0.30 | 4.56 | 9.00 | 0.9 | 0.90 | 98 |
16 | TXR228/0.30 | 5.60 | 10.20 | 1.00 | 0.90 | 132 |
25 | TXR361/0.30 | 6.95 | 12.00 | 1.19 | 0.92 | 176 |
35 | TXR276/0.40 | 8.74 | 13.80 | 1.20 | 1.00 | 218 |
Construction:Tinned copper + XLPO insulation.
Test voltage:6500V 5min.
Rated voltage:1000/1800V DC.
Halogen free and low smoke.
Tenperature rating:-40°C to 125°C,cold resistance.
UL and TUV certification.
![]() |
