    Silicone Rubber Multimeter Test Leads Multicolor 32A With Banana Plug

    Ask Lasest Price
    Brand Name : Hexie
    Model Number : 4mm Safety Banana Plug Test Lead
    Certification : RoHS SGS UL IATF16949 ISO9001
    Price : USD0.35-1.85 per Piece
    Payment Terms : T/T, Western Union, MoneyGram,PayPal
    Supply Ability : 50000Pcs per Month
    Delivery Time : 7-15 work days
    • Product Details
    • Company Profile

    Silicone Rubber Multimeter Test Leads Multicolor 32A With Banana Plug

    High Voltage Safety Type 4mm Stackable Banana Plug Test Lead Soft Silicone Test Cable for Multimeter
    Product Description

    Measuring lead,at either end 4 mm diameter plug with caged spring and 4 mm

    diameter socket for tower construction. Nickel-plated copper beryllium contact

    spring. Highly flexible, double insulated stranded lead, grip and lead shatter-proof.

    Built in colour indicator for easy identifcation of insulation damages.

    Specifications

    Connector:4 mm Stackable banana plug

    Cable length:50cm 100cm 200cm or customization

    Conductor size:1.309mm²(16AWG) or 2.624mm²(13AWG)

    Cable material:PVC or Silicone

    Cable color:Red Black Blue

    Housing Color:Red Black Blue

    Pin dimensions:4 mm

    Cable specification:highly flexible lead

    Wire stranding: 252x0.08 or 500x0.08mm

    Rated voltage: DC60V-600V

    Testing voltage:2000V

    Rated current:16A-30A

    Contact resistance:22mOhm

    Contact material contact pin: brass, contact spring: copper beryllium

    Contact surface material nickel-plated

    Housing material:PA ABS etc.

    Environmental conditions

    Temperature range -15 °C to +70 °C

    Inflammability class

    Cable 94 HB

    Housing 94 V-2


    Product NameHigh Voltage Safety Type 4mm Stackable Banana Plug Test Leads
    BrandHXE
    Model No.Test Lead-012
    Cable Type4mm Banana Plug Test Leads
    Connector 14mm Stackable Banana Plug
    Connector 24mm Stackable Banana Plug
    Connector platingGold Plated or Nickel Plated
    GenderMale to Male
    Wire13AWG/14AWG/16AWG Silicone Cable
    ConductorBare Copper or Tinned Copper
    Pin layoutStandard
    JacketSilicone
    SampleAvailable
    MOQ1000 pcs
    PackagePE bags
    Warranty12 months
    OEMSupport

    Detailed Images

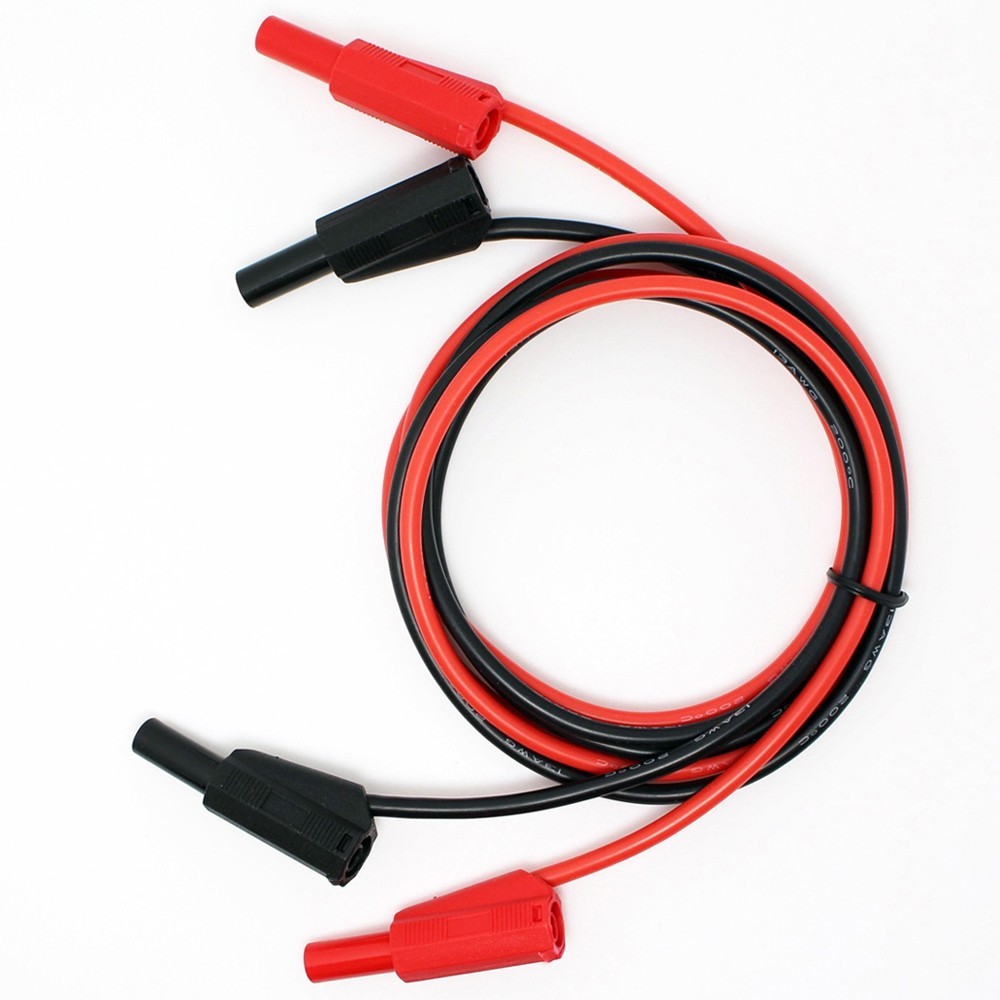

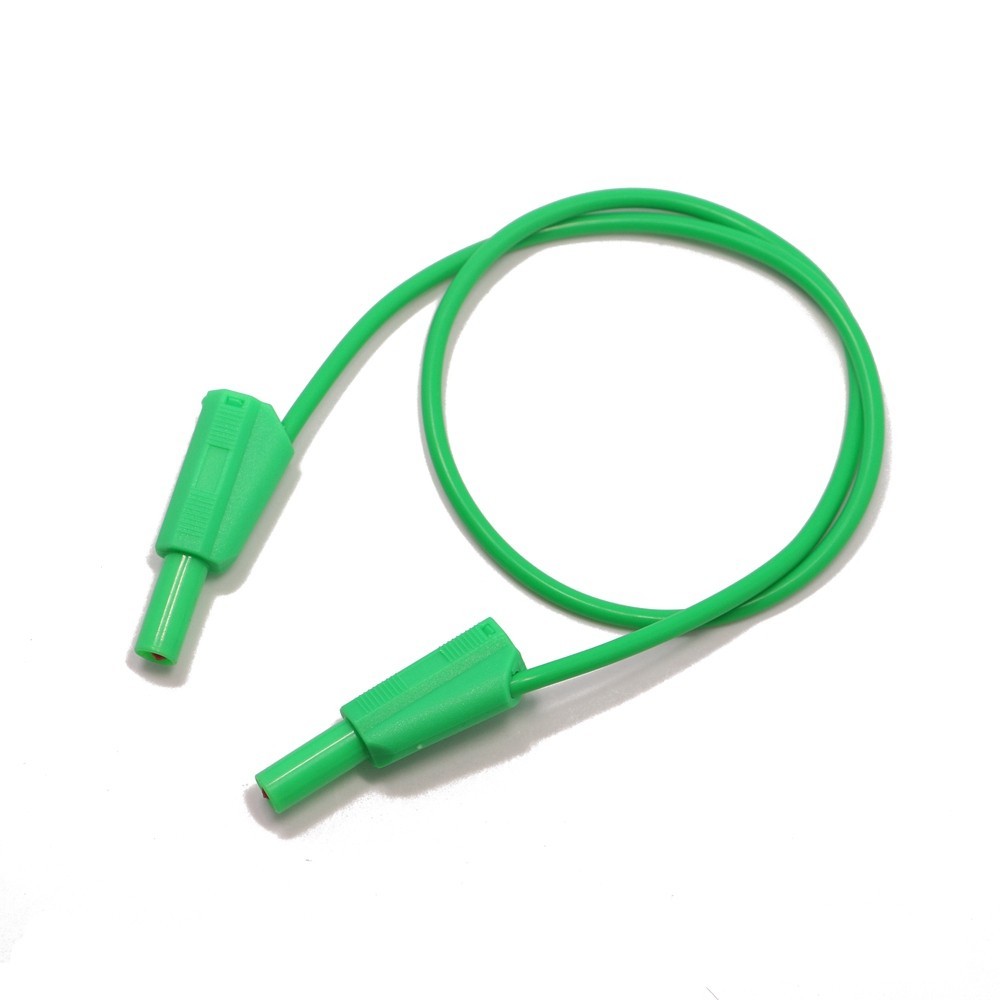

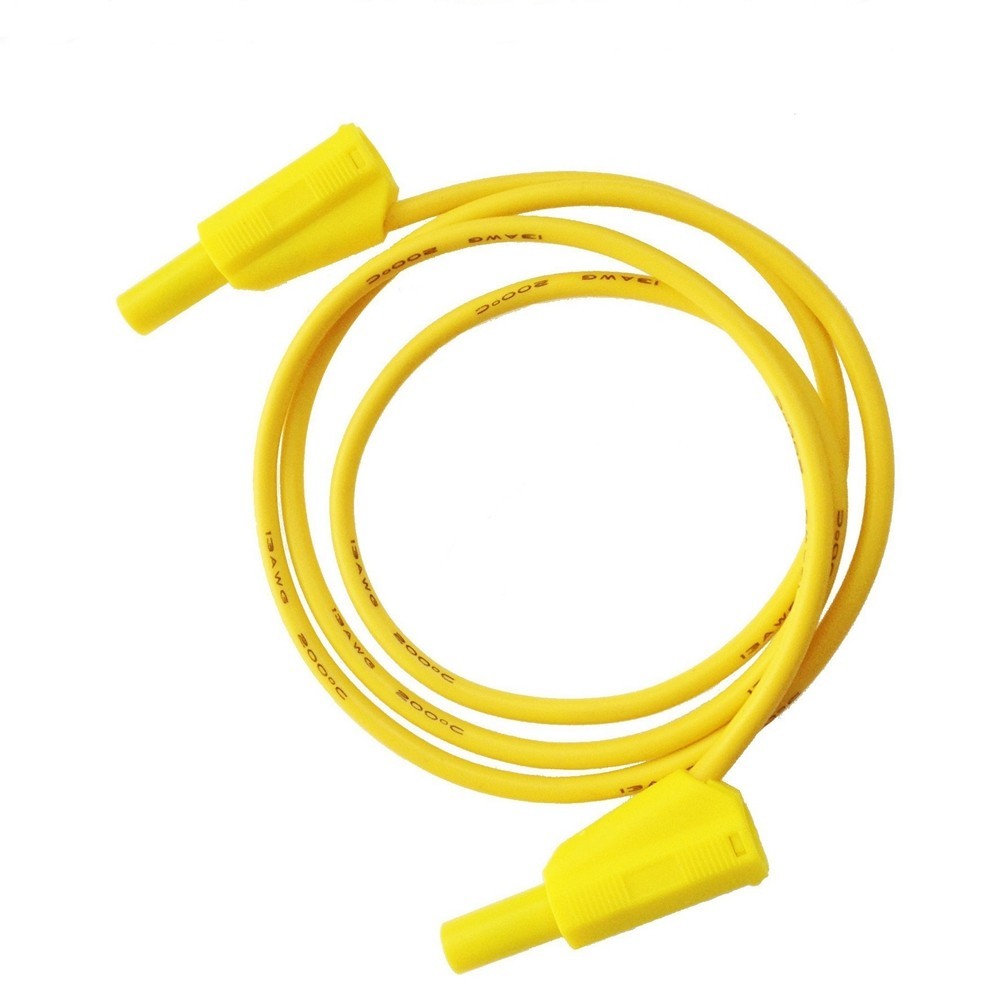

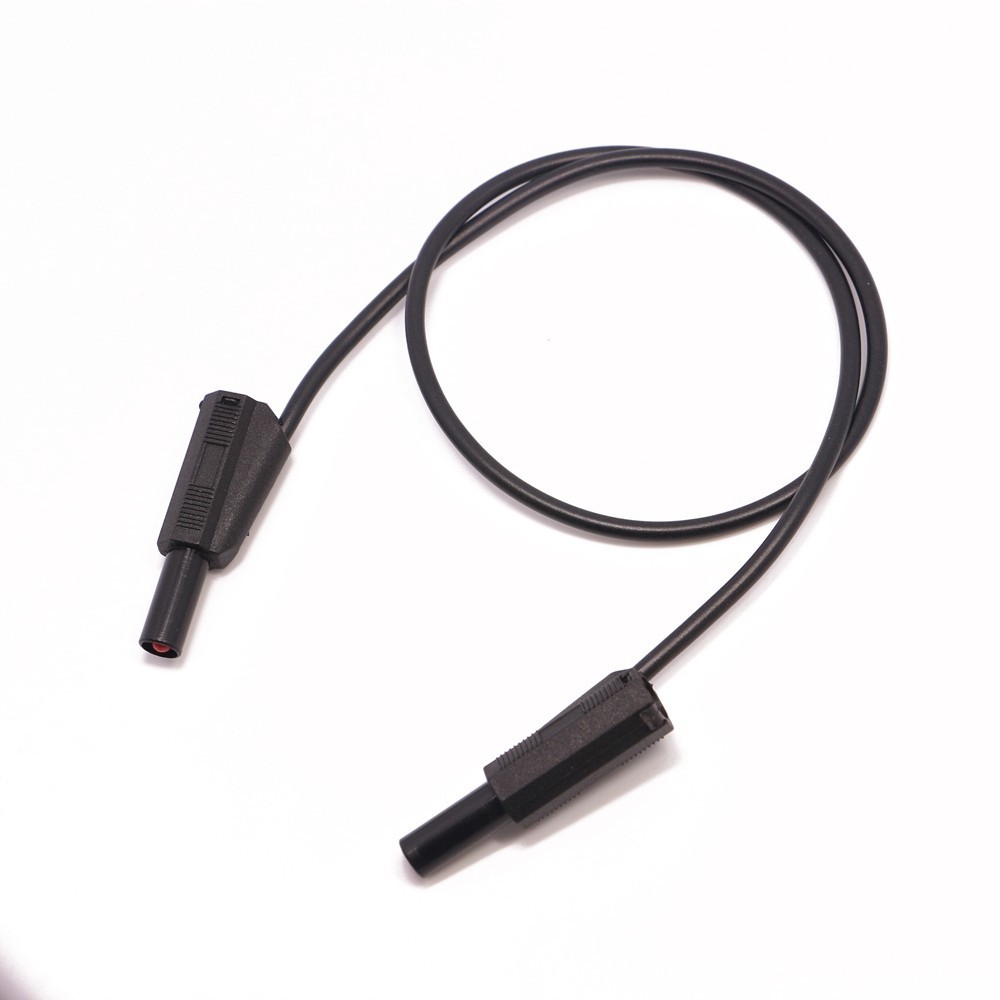

    Silicone Rubber Multimeter Test Leads Multicolor 32A With Banana PlugSilicone Rubber Multimeter Test Leads Multicolor 32A With Banana PlugSilicone Rubber Multimeter Test Leads Multicolor 32A With Banana PlugSilicone Rubber Multimeter Test Leads Multicolor 32A With Banana PlugSilicone Rubber Multimeter Test Leads Multicolor 32A With Banana PlugSilicone Rubber Multimeter Test Leads Multicolor 32A With Banana PlugSilicone Rubber Multimeter Test Leads Multicolor 32A With Banana Plug
