5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing

    Buy cheap 5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing from wholesalers

    Buy cheap 5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing from wholesalers
    • Buy cheap 5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing from wholesalers
    • Buy cheap 5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing from wholesalers
    • Buy cheap 5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing from wholesalers
    • Buy cheap 5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing from wholesalers

    5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing

    Ask Lasest Price
    Brand Name : Hexie
    Model Number : EC5 Connector
    Certification : CE,ROHS
    Price : negotiated
    Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram,Paypal,Trade Insurance order
    Supply Ability : 50000pairs per week
    Delivery Time : 3-5working days after receive payement
    • Product Details
    • Company Profile

    5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing

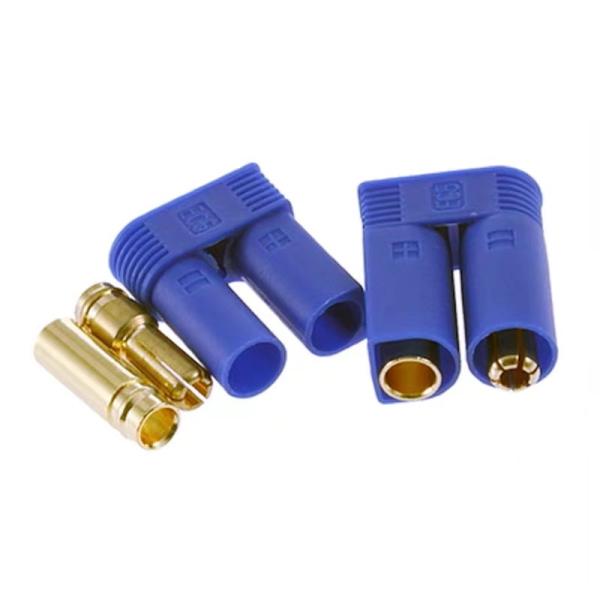

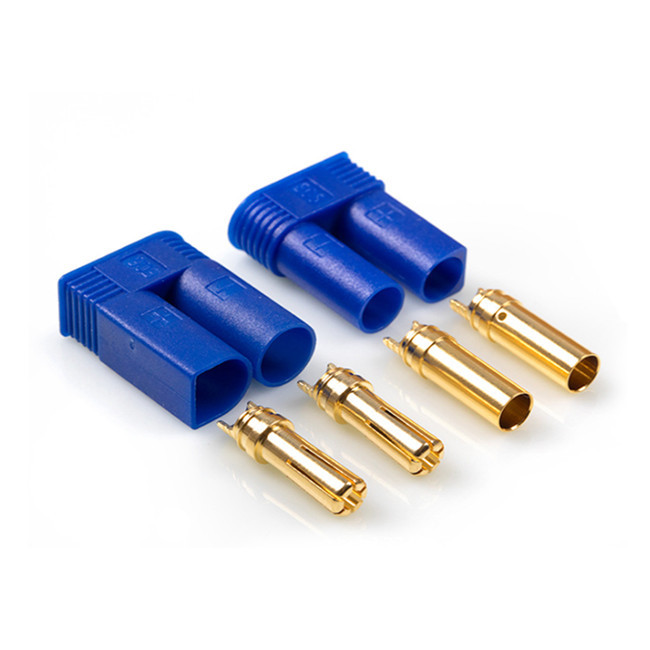

    EC5 Battery Connectors Male & Female 5.0mm Gold Plated Connector with Blue Plastic Housing

    1.PA66 housing can keep the stength without deformation,melt when working under large current and high temperature.

    2.Male and female close integration insures metal contactor perfectly combined and current stable transmission. 15g/set.


    Description:

    Key features of EC5 include:
    5MM bullet connectors
    Ergonomically pleasing and easy to grip
    Protected to avoid shorting and reverse polarity
    Superior technology suited to today's advanced applications
    for Designed with convenience and reliability in mind
    Color: Blue


    Feature
    Plug material: copper plating gold
    Cover material: PA
    Rated current: 40A
    Momentary current: 90A
    Use times: 1000 times
    Contact resistance: 0.40mΩ
    Rated voltage: DC 500V
    Flame retardant level: V2
    Using: battery / controller
    Recommend Cable: 10AEG
    Work Temperature: -20℃ to 120℃

    Specifications

    Housing MaterialPA Material
    Contact MaterialCopper with Gold Plated
    ColorBlue or Black
    Weight15g/Set
    FuctionUse for RC Lipo Battery Power
    GenderMale and Female
    Delivery Time5-7 Days
    CustomizedOEM/ODM Available
    5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing5mm EC5 RC Battery Connectors Gold Plated With Blue Plastic Housing
