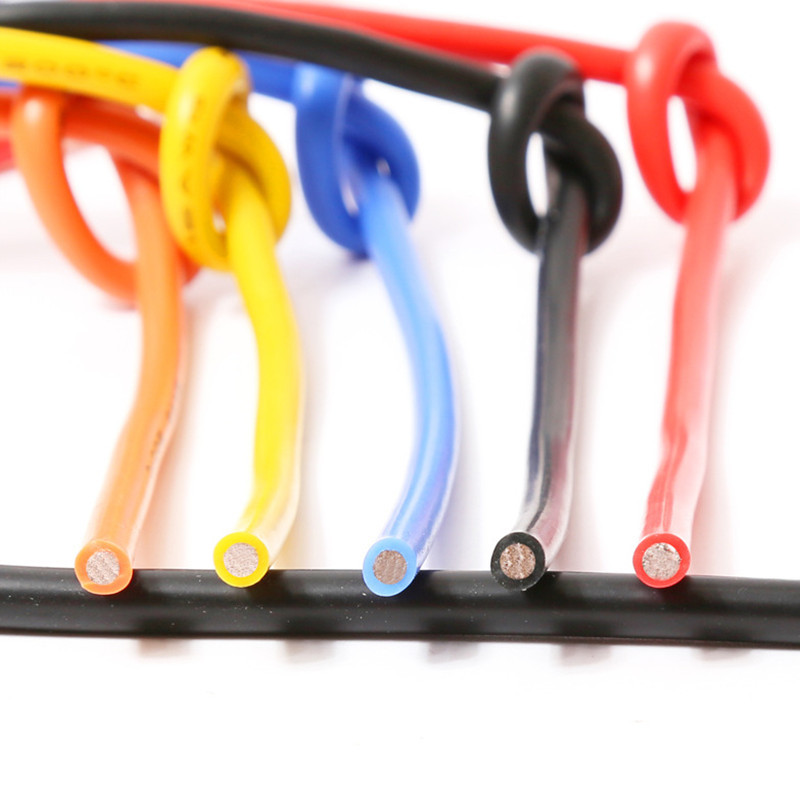

Flexible Silicone Cable 1650/ 0.08 8 AWG Stranded Copper Wire 600V 200℃
Description:
Ultra Flexible, Low Resistance, Strand Wire,High Performance Pure Silicone Wire
- High-quality tinned copper inner core, can maintained copper wire for a long time does not oxidize .
- Scope: Applicable to all kinds of electrical and electronic, industrial electronics, model aircraft, Cars, ship model, batteries, motors and other links insulation.
Specification:
- Color: Red
- Material: Conductor - tinned copper
- Insulator: Silicone
- Wire number: 8AWG
- Number of shares : 1650
- diameter:
- Sheath outer diameter:
- Conductor resistance: 9.8 ohm one thousand meters
- Rated voltage: 600V
- Testing Voltage:2000V
- Bear Current:60A
- Temperature range: -60 ~ + 200
- Outer diameter tolerance:
-
| | Iusulator | Rical Character |
Sectional area
|
Carrying current
| packing |
| Spe (AWG) | Copper wire shares
(compos.NO./mm) | Diameter (mm) | Jacket Thick
(mm) | Overall diameter
(mm) | Conductor resistance
(Ohm/km) | Square millimeter(mm2) | (ampere) |
(M/coils)
|
| | 11/0.08 | 0.30 | 0.55 | 1.20 | 331.00 | 0.05 | 0.80 | 200.00 |
| 28AWG | 16/0.08 | 0.36 | 0.55 | 1.30 | 227.20 | 0.08 | 1.25 | 200.00 |
| 26AWG | 30/0.08 | 0.46 | 0.55 | 1.50 | 123.00 | 0.14 | 3.50 | 200.00 |
| 24AWG | 40/0.08 | 0.61 | 0.55 | 1.60 | 97.60 | 0.20 | 5.00 | 200.00 |
| 22AWG | 60/0.08 | 0.78 | 0.55 | 1.70 | 88.60 | 0.33 | 8.73 | 200.00 |
| 20AWG | 100/0.08 | 0.92 | 0.55 | 1.80 | 62.50 | 0.50 | 13.87 | 200.00 |
| 18AWG | 150/0.08 | 1.19 | 0.55 | 2.30 | 39.50 | 0.75 | 22.00 | 200.00 |
| 17AWG | 210/0.08 | 1.33 | 0.80 | 2.70 | 21.40 | 1.00 | 31.00 | 200.00 |
| 16AWG | 252/0.08 | 1.53 | 0.80 | 3.00 | 24.40 | 1.27 | 35.00 | 100.00 |
| 15AWG | 336/0.08 | 1.69 | 0.80 | 3.10 | 20.02 | 1.68 | 42.00 | 100.00 |
| 14AWG | 400/0.08 | 1.78 | 0.90 | 3.50 | 15.60 | 2.07 | 55.60 | 100.00 |
| 13AWG | 500/0.08 | 2.06 | 0.95 | 4.00 | 12.50 | 2.50 | 65.00 | 100.00 |
| 12AWG | 680/0.08 | 2.48 | 1.00 | 4.50 | 9.80 | 3.40 | 88.40 | 100.00 |
| 11AWG | 800/0.08 | 2.59 | 1.00 | 4.60 | 7.38 | 3.96 | 100.00 | 100.00 |
| 10AWG | 1050/0.08 | 3.06 | 1.25 | 5.50 | 6.30 | 5.30 | 140.60 | 100.00 |
| 8AWG | 1650/0.08 | 3.75 | 1.50 | 6.80 | 4.20 | 8.29 | 200.00 | 100.00 |
| 6AWG | 3430/0.08 | 5.40 | 1.30 | 8.00 | 1.20 | 17.23 | 320.00 | 50.00 |
| 4AWG | 5000/0.08 | 6.50 | 1.75 | 10.50 | 0.84 | 25.00 | 120.00 | |
| 2AWG | 7000/0.08 | 8.00 | 2.00 | 12.00 | 0.53 | 35.00 | 175.00 | |
-
