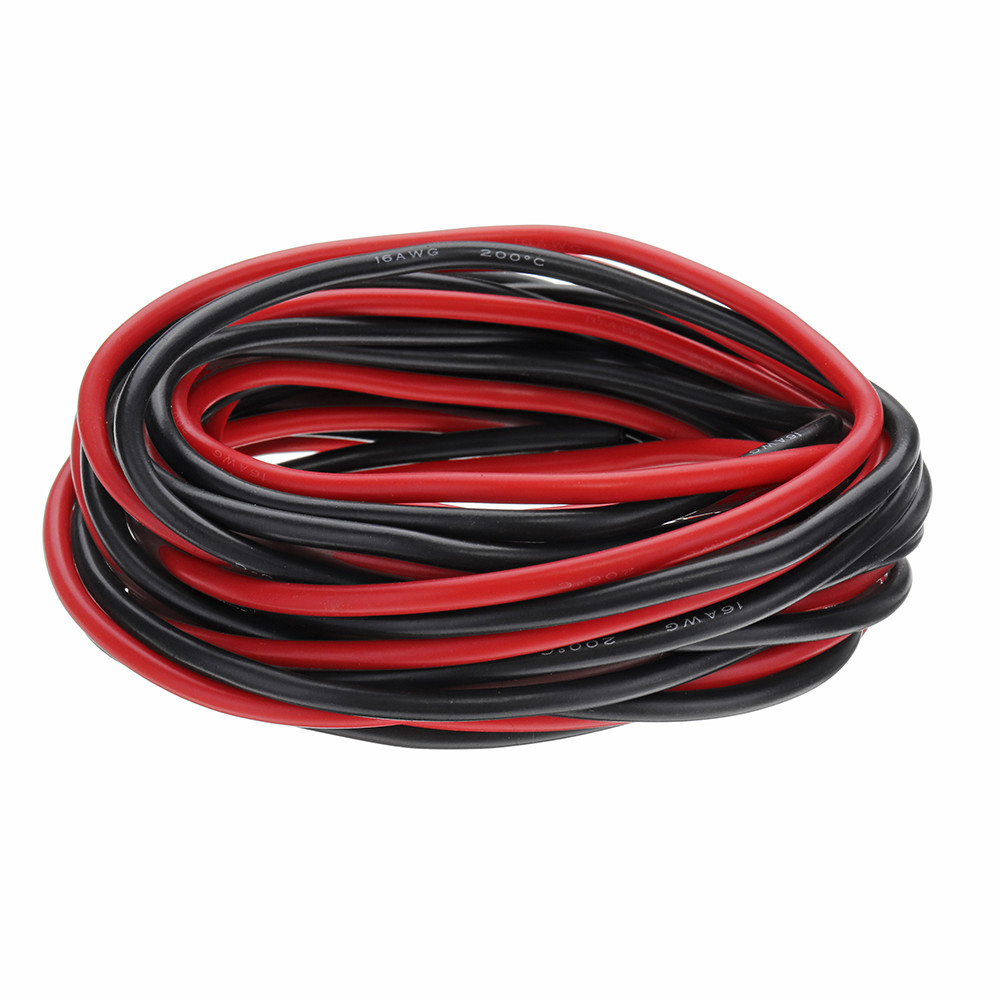

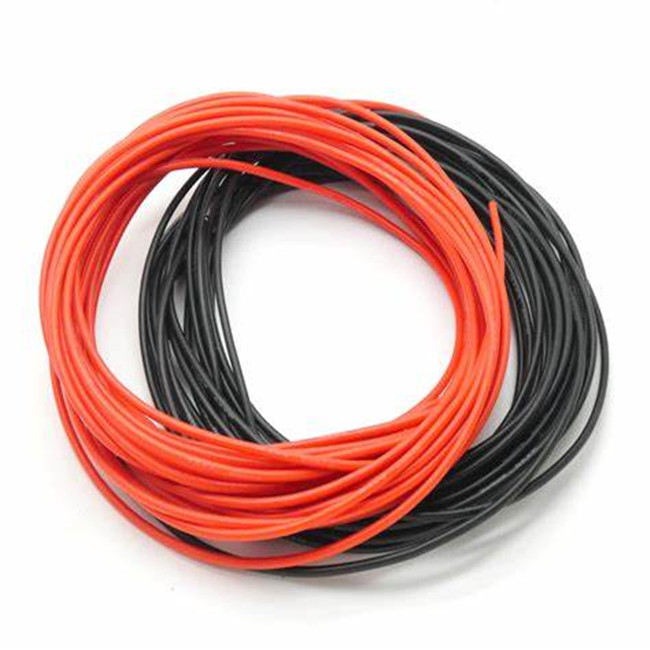

Flexible Silicone Cable 252/ 0.08 16AWG copper insulator Wire 600V 200℃
You could buy full roll or buy meters
Specification:
Model Number: 16AWG Silicone Wire
Packing:200Meter / Roll
Net Weight: 4.25kg/Roll
Color:Red/Black
Rated voltage:600V Rated temperature:-60 to 200 degree
Stranded Tinned copper, 252/0.08TS OD:3.0mm
Insulator:Silicone Rubber
Application:Highly Efficient - Super Low Impedance, High Temperature Resistant Silicone Wire
-
| | Iusulator | Rical Character |
Sectional area
|
Carrying current
| packing |
| Spe (AWG) | Copper wire shares
(compos.NO./mm) | Diameter (mm) | Jacket Thick
(mm) | Overall diameter
(mm) | Conductor resistance
(Ohm/km) | Square millimeter(mm2) | (ampere) |
(M/coils)
|
| | 11/0.08 | 0.30 | 0.55 | 1.20 | 331.00 | 0.05 | 0.80 | 200.00 |
| 28AWG | 16/0.08 | 0.36 | 0.55 | 1.30 | 227.20 | 0.08 | 1.25 | 200.00 |
| 26AWG | 30/0.08 | 0.46 | 0.55 | 1.50 | 123.00 | 0.14 | 3.50 | 200.00 |
| 24AWG | 40/0.08 | 0.61 | 0.55 | 1.60 | 97.60 | 0.20 | 5.00 | 200.00 |
| 22AWG | 60/0.08 | 0.78 | 0.55 | 1.70 | 88.60 | 0.33 | 8.73 | 200.00 |
| 20AWG | 100/0.08 | 0.92 | 0.55 | 1.80 | 62.50 | 0.50 | 13.87 | 200.00 |
| 18AWG | 150/0.08 | 1.19 | 0.55 | 2.30 | 39.50 | 0.75 | 22.00 | 200.00 |
| 17AWG | 210/0.08 | 1.33 | 0.80 | 2.70 | 21.40 | 1.00 | 31.00 | 200.00 |
| 16AWG | 252/0.08 | 1.53 | 0.80 | 3.00 | 24.40 | 1.27 | 35.00 | 100.00 |
| 15AWG | 336/0.08 | 1.69 | 0.80 | 3.10 | 20.02 | 1.68 | 42.00 | 100.00 |
| 14AWG | 400/0.08 | 1.78 | 0.90 | 3.50 | 15.60 | 2.07 | 55.60 | 100.00 |
| 13AWG | 500/0.08 | 2.06 | 0.95 | 4.00 | 12.50 | 2.50 | 65.00 | 100.00 |
| 12AWG | 680/0.08 | 2.48 | 1.00 | 4.50 | 9.80 | 3.40 | 88.40 | 100.00 |
| 11AWG | 800/0.08 | 2.59 | 1.00 | 4.60 | 7.38 | 3.96 | 100.00 | 100.00 |
| 10AWG | 1050/0.08 | 3.06 | 1.25 | 5.50 | 6.30 | 5.30 | 140.60 | 100.00 |
| 8AWG | 1650/0.08 | 3.75 | 1.50 | 6.80 | 4.20 | 8.29 | 200.00 | 100.00 |
| 6AWG | 3430/0.08 | 5.40 | 1.30 | 8.00 | 1.20 | 17.23 | 320.00 | 50.00 |
| 4AWG | 5000/0.08 | 6.50 | 1.75 | 10.50 | 0.84 | 25.00 | 120.00 | |
| 2AWG | 7000/0.08 | 8.00 | 2.00 | 12.00 | 0.53 | 35.00 | 175.00 | |
-
-
-
Dongguan Hexie New Energy Technology Co., Ltd.
Dongguan Hexie New Energy Technology Co.,Ltd is a company focus on
wire harness filed for 13years' experiences,major products on
connectors,handware plugs, new energy vehicle wiring hares,power
battery wiring haress,super soft silicone wire,car emergency smart
alligator clips wire,power plug cable,battery wire,drone wire
haress,dynamic model ,peripheral accessories,medical equipment,
digital surrounding etc connector products. located in Humen town
of Dongguan, Guangdong. Founded in 2009, coverd 20,000 square
meters, with build area 1,500 square meters, with fixed sets of 25
million Yuan, more than 300 staff,. We took the lead in getting in
ISO9001 quality system, TS16949 quality system,our products have
passed national CCC, America ULCUL and other safety approved.
It is a company from producing wires to assembling
finished-products,from hardware lathing parts to Injection molding,
a collection of r&d,production, sales far the integration of
wholly owned company.
