    PC Multicolor Anderson Power Pole Connector Kit Stable Multiscene

    Ask Lasest Price
    Brand Name : Hexie
    Model Number : 75A Anderson Connector
    Certification : CE,ROHS
    Price : negotiated
    Payment Terms : T/T, PayPal
    Supply Ability : 10000 pcs per month
    Delivery Time : 7-10 working days after receive payment
    • Product Details
    • Company Profile

    PC Multicolor Anderson Power Pole Connector Kit Stable Multiscene

    75A Single Pole Anderson Powerpole Connectors with Copper Contact For Car Battery Solar Caravan Boat Connector

    Rated current: 75A
    Color: Black/Red/Yellow/Blue
    Wire Diameter : Various American Standard Wire Diameters
    Interface type: AC or DC
    Rated voltage: 600V
    Working Temperature:-25℃-105 ℃
    Shell material: PC UL94V0
    Terminals material: Silver-plated Copper

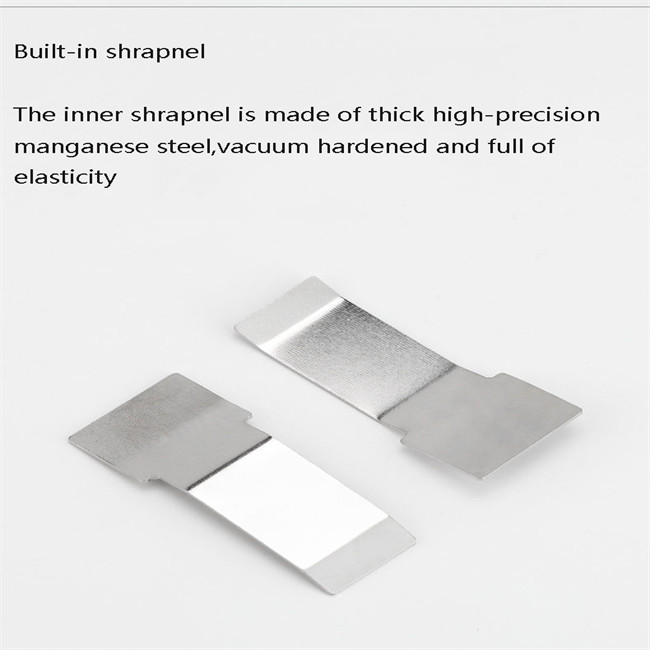

    Shrapnel material: 65Mn Steel


    item
    value
    Place of Origin
    China
    Guangdong
    Brand Name
    Hexie
    Model Number
    75A
    Type
    Adapter
    Application
    Electric vehicles
    Product name
    Anderson connector
    Rated Current

    30A 45A 75A 120A 180A

    Rated Voltage
    600V
    Shell
    PC
    terminal
    Copper silver plating
    Color
    Red gray blue yellow green
    Fire rating
    VL94 V-0
    temperature
    -20°~105°
    Insulation Withstanding Voltage:
    2200V AC/DC

    Rated current (A)Rated voltage (V)Terminal maternalPlastic shell materialInternal shrapnelEnvironment temperature(℃)Connector specification(AWG)

    Connector specification

    (mm²)

    30600VSilver-plated CopperUL94 V-065Mn-20℃~105℃

    10-12

    AWG

    2.5-4

    mm²

    7512-6AWG

    4-16

    mm²

    1206-2AWG

    10-25

    mm²

    180

    6-1/0

    AWG

    10-50

    mm²

    PC Multicolor Anderson Power Pole Connector Kit Stable MultiscenePC Multicolor Anderson Power Pole Connector Kit Stable MultiscenePC Multicolor Anderson Power Pole Connector Kit Stable Multiscene
