    Dual Pole Anderson Powerpole Connectors 50A 600V For Forklift Battery Terminal

    Ask Lasest Price
    Brand Name : Hexie
    Model Number : 50A 600V Anderson Battery Connector
    Certification : RoHS SGS UL IATF16949 ISO9001
    Price : USD0.15-8.85 per Piece
    Payment Terms : T/T, Western Union, MoneyGram,PayPal
    Supply Ability : 50000Pcs per Month
    Delivery Time : 7-10 work days
    • Product Details
    • Company Profile

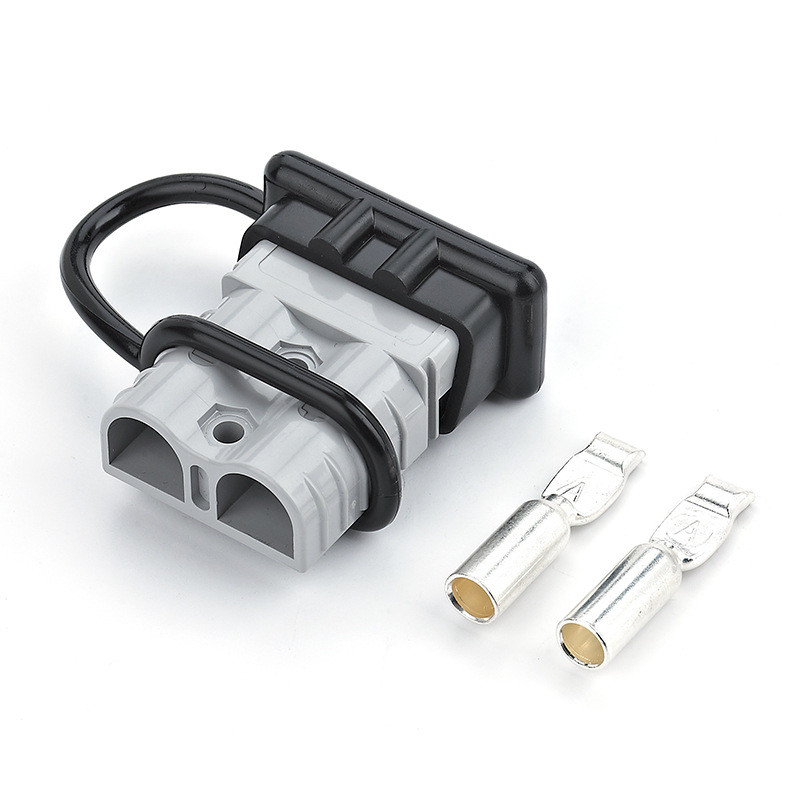

    Dual Pole Anderson Powerpole Connectors 50A 600V For Forklift Battery Terminal

    This High Current power connector is a brand from China, “A” and “B” series identify the single pole and dual pole products, the connectors provide cost-effective quality and reliability, design flexibility and safety, equal the famous brands APP, REMA, TYCO,AMP,SMH and KSJ.

    The power connectors are widely application in Military, Avionics, Boat, Yacht, Bus, Vehicles, Golf Cart , Forklift, e-sweeper, all kind of automotive, posts and telecommunications, communications, electricity, solar system, coal, aerospace, defense, surveillance systems, railway signals, medical equipment, instruments and meters, EV Charging system, AGV, IoT, Robot and other automation fields.


    Dual Pole Anderson Powerpole Connectors 50A 600V For Forklift Battery TerminalDual Pole Anderson Powerpole Connectors 50A 600V For Forklift Battery TerminalDual Pole Anderson Powerpole Connectors 50A 600V For Forklift Battery Terminal


    1. Features

    Genderless Housings

    Quick and easy assembly

    Low Resistance Connection

    Silver or tin plated copper contacts inside housings provide tightly connection

    Support Hot Plug

    Contacts design a sacrificial tip that allows high current circuit interrupt

    Color identified housings

    Prevent accidental mating at different voltage levels

    Self-Securing Design

    Stainless steel springs create a robust force between the contacts to fix the connector in the mated position

    Auxiliary or Ground Positions

    Use for signal transmission or promote safety of contacts


    Dual Pole Anderson Powerpole Connectors 50A 600V For Forklift Battery Terminal

    2. Specifications


    Connector Model


    SB50

    Rated Current

    A

    50

    Rated Voltage

    V

    600

    Contact Barrel Wire Size

    AWG/ mm²

    6/10/12AWG (13.3/5.3/3.3mm²)

    Average Contact Resistance

    0.05

    Insulation Withstanding Test Voltage

    Vdc

    2200

    Insulation Resistance

    MΩ

    >500

    No load Contact/Disconnect Cycles

    times

    >10,000

    Under Load (Hot Plug 250 cycles@120V

    A

    50

    Avg. Connect/Disconnect Force

    N

    53

    Operating Temperature Range

    C

    -20°to 125°

    Size

    mm

    48.1*36.4*16

    Flammability Rating of Housing Material


    UL94 V-0

    Contact material


    Silver plated copper
