Brand Name : | Hexie |
Model Number : | 350A Energy Storage Waterproof Connector |
Certification : | RoHS SGS UL IATF16949 ISO9001 |
Price : | USD0.15-8.85 per Piece |
Payment Terms : | T/T, Western Union, MoneyGram,PayPal |
Supply Ability : | 50000Pcs per Month |
Delivery Time : | 7-10 work days |
This product is energy storage plastic connector, which is applicable for high-voltage, high current connection between components such as energy stoarge cabinet, energy storage station, mobile energy storage vehicles, photovoltaic power station, etc.
Electrical Performance | |
Rated Current | 300A/350A |
Rated Voltage | UL DC 1000V, TUV 1500V DC |
Insulation Resistance | 5000 mΩ Min (Dry) 200 mΩ Min (RH 95%) |
Test Voltage | 4000V AC |
Mechanical Performance | |
Minimum Mating Cycles | 500 times |
Wire Range | 70mm2~95mm2 |
Environment Performance | |
Protection Grade | IP67B |
Operation Temperature | -40 ℃ ~+125 ℃ |
Salt Spray Resistance | 144H (Mating State) |
Reference Standard | |
USCAR-2 |
USCAR-37 |

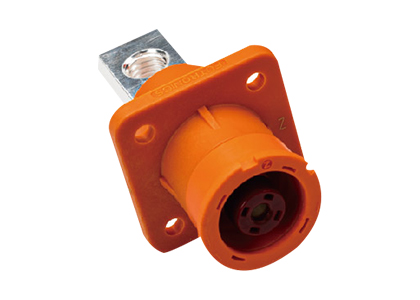

Product Pictures:
Drawings:
Plug
![]() |
