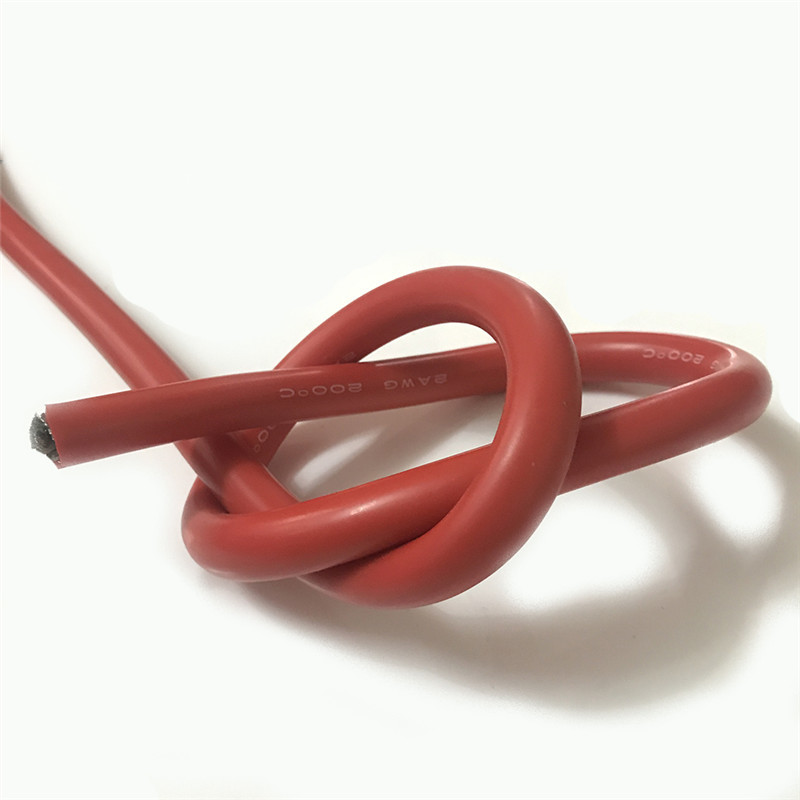

Flexible Silicone Cable 7000/ 0.08 Tinned Copper Rubber Wire 2awg 35mm²
conductor Size : 7000/0.08TS
Cross Sectional Area : 35mm2
Conductor material : Stranded tinned copper
Insulation Material : Silicone rubber
Rated Voltage : 600V
Temperature Range : -60 deg C to 200 deg C
Overall Diameter : 12mm
Color : Black, Red, White, Yellow, Green, Brown, Customize
Package : Roll
MOQ and Price : Please contact us
Certification
ISO9001, IATF16949:2016, ROHS, SGS, REACH
Shipments
Express, By sea or according to customers requirements
We can also produce wiring harness according to the customers' demands.
We have wiring harness production department, We can provide cut wire, stripping wire, dip tin, terminal wire, male and female plug etc. according to customer's requirement.
Application:
It's widely used in internal wiring of electronic, battery, RC batteries, model wiring, electric appliance and instrument equipment, external wiring of Large transformer, lighting and motor.
-
| | Iusulator | Rical Character |
Sectional area
|
Carrying current
| packing |
| Spe (AWG) | Copper wire shares
(compos.NO./mm) | Diameter (mm) | Jacket Thick
(mm) | Overall diameter
(mm) | Conductor resistance
(Ohm/km) | Square millimeter(mm2) | (ampere) |
(M/coils)
|
| | 11/0.08 | 0.30 | 0.55 | 1.20 | 331.00 | 0.05 | 0.80 | 200.00 |
| 28AWG | 16/0.08 | 0.36 | 0.55 | 1.30 | 227.20 | 0.08 | 1.25 | 200.00 |
| 26AWG | 30/0.08 | 0.46 | 0.55 | 1.50 | 123.00 | 0.14 | 3.50 | 200.00 |
| 24AWG | 40/0.08 | 0.61 | 0.55 | 1.60 | 97.60 | 0.20 | 5.00 | 200.00 |
| 22AWG | 60/0.08 | 0.78 | 0.55 | 1.70 | 88.60 | 0.33 | 8.73 | 200.00 |
| 20AWG | 100/0.08 | 0.92 | 0.55 | 1.80 | 62.50 | 0.50 | 13.87 | 200.00 |
| 18AWG | 150/0.08 | 1.19 | 0.55 | 2.30 | 39.50 | 0.75 | 22.00 | 200.00 |
| 17AWG | 210/0.08 | 1.33 | 0.80 | 2.70 | 21.40 | 1.00 | 31.00 | 200.00 |
| 16AWG | 252/0.08 | 1.53 | 0.80 | 3.00 | 24.40 | 1.27 | 35.00 | 100.00 |
| 15AWG | 336/0.08 | 1.69 | 0.80 | 3.10 | 20.02 | 1.68 | 42.00 | 100.00 |
| 14AWG | 400/0.08 | 1.78 | 0.90 | 3.50 | 15.60 | 2.07 | 55.60 | 100.00 |
| 13AWG | 500/0.08 | 2.06 | 0.95 | 4.00 | 12.50 | 2.50 | 65.00 | 100.00 |
| 12AWG | 680/0.08 | 2.48 | 1.00 | 4.50 | 9.80 | 3.40 | 88.40 | 100.00 |
| 11AWG | 800/0.08 | 2.59 | 1.00 | 4.60 | 7.38 | 3.96 | 100.00 | 100.00 |
| 10AWG | 1050/0.08 | 3.06 | 1.25 | 5.50 | 6.30 | 5.30 | 140.60 | 100.00 |
| 8AWG | 1650/0.08 | 3.75 | 1.50 | 6.80 | 4.20 | 8.29 | 200.00 | 100.00 |
| 6AWG | 3430/0.08 | 5.40 | 1.30 | 8.00 | 1.20 | 17.23 | 320.00 | 50.00 |
| 4AWG | 5000/0.08 | 6.50 | 1.75 | 10.50 | 0.84 | 25.00 | 120.00 | |
| 2AWG | 7000/0.08 | 8.00 | 2.00 | 12.00 | 0.53 | 35.00 | 175.00 | |
-
-
