    EV HV High Voltage Flexible Silicone Cable 1.5mm2-95mm2 Practical

    Ask Lasest Price
    Brand Name : Hexie
    Model Number : Silicone Cable with EV HV insulation
    Certification : UL ROHS
    Price : Negotiated
    Payment Terms : L/C, D/A, D/P, T/T,Paypal/Trade Insurance Order
    Supply Ability : 500000m per month
    Delivery Time : 3-7working days after receive payement
    • Product Details
    • Company Profile

    EV HV High Voltage Flexible Silicone Cable 1.5mm2-95mm2 Practical

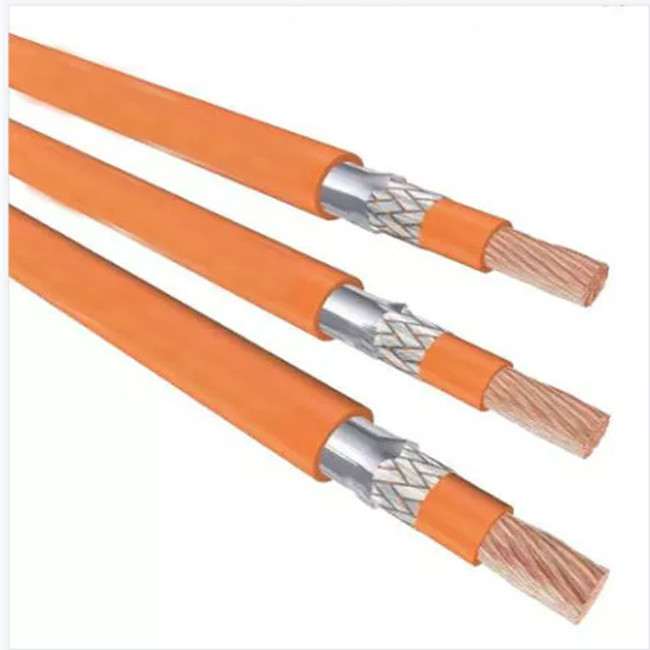

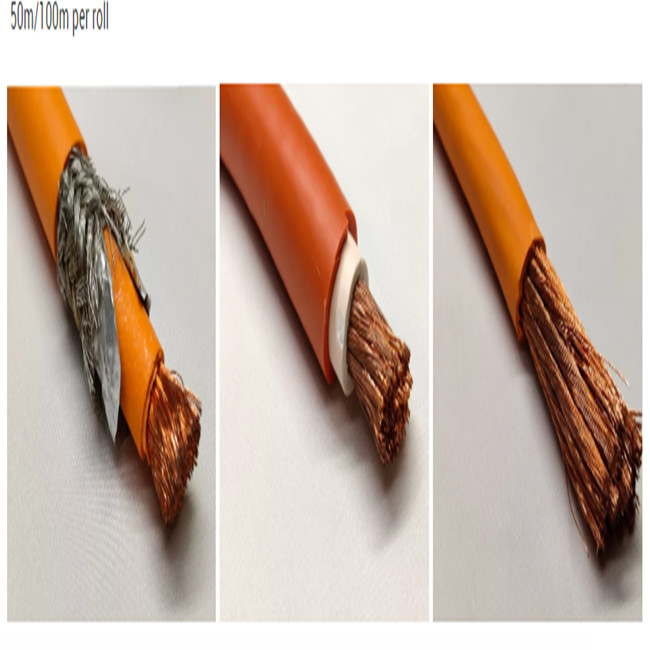

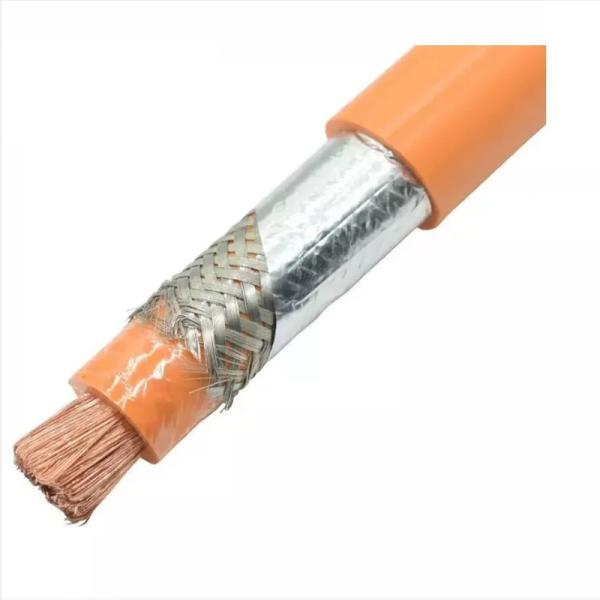

    Flexible Silicone Cable EV HV insulation high voltage power wire with shield


    We can produce all kinds of high quality new energy vehicles wire, including LV HV car cable,mainly used in AC/DC charging system of electrical vehicles, as the connection cable between AC and DC charging connector of vehicles and charging piles, and cables used inside new energy vehicles, etc.


    Features:

    Using temperature : -40℃~+125℃; 40℃~+150℃; -40℃~+180℃; 40℃~+200℃.
    Rated voltage: 600V AC,suitable for 1500V DC high voltage conditions
    Cable material meets GB/ T2408 HB,V0 combustion grade
    The belding radius not less than five times the cable 5xOD, easy to install
    Halongen free, follow the environment-friendly product's developing direction
    • e of the cable (mm²)
      Conductor Construction
      n/mm
      Stranded Dia.
      mm Max
      Conductor Max Resstance AT 20℃ (Ω/Km)
      Nominal Thickness
      (mm)
      Insulation Dia.
      (mm)
      EV-YJ/SIR 1x1.5(Unshielded)
      49/0.20AS
      1.62
      12.7
      0.60
      2.90±0.15
      EV-YJ/SIR 1×2.5(Unshielded)
      80/0.20AS
      2.06
      7.60
      0.70
      3.50+0.15
      EV-YJ/SIR 1×4(Unshielded)
      133/0.20AS
      2.66
      4.71
      0.80
      4.30±0.20
      EV-YJ/SIR 1x6(Unshielded)
      190/0.20AS
      3.42
      3.14
      0.80
      5.10±0.20
      EV-YJ/SIR 1×10(Unshielded)
      323/0.20AS
      4.40
      1.82
      1.00
      6.50±0.20
      EV-YJ/SIR 1×16(Unshielded)
      513/0.20AS
      5.70
      1.16
      1.00
      7.90±0.25
      EV-YJ/SIR 1x25(Unshielded)
      798/0.20AS
      6.70
      0.743
      1.30
      9.60±0.25
      EVYJSIR 1×35(Unshielded)
      1121/0.20AS
      8.00
      0.527
      1.30
      10.60±0.40
      EV-YJSIR 1×50(Unshielded)
      1596/0.20AS
      9.50
      0.368
      1.50
      12.50+0.40
      EV-YJSIR 1x70(Unshielded)
      2257/0.20AS
      11.50
      0.259
      1.50
      14.50±0.40
      EV-YJ/SIR 1x95(Unshielded)
      1887/0.254AS
      13.50
      0.196
      1.60
      16.90±0.50
      EV-YJ/SIR 1x120(Unshielded)
      2368/0.254AS
      15.60
      0.153
      1.60
      19.00±0.50
