Nontoxic ESC Banana Plug Connectors 4mm Female Male For RC Battery

Ask Lasest Price
Brand Name :	Hexie
Model Number :	4.0MM gold bullet connector
Certification :	ROHS
Price :	negotiated
Payment Terms :	T/T,Paypal or Trade insurance order
Supply Ability :	50000mpairper week
Delivery Time :	5-10 working days after receive payement

Add to Cart

Product Details
Company Profile

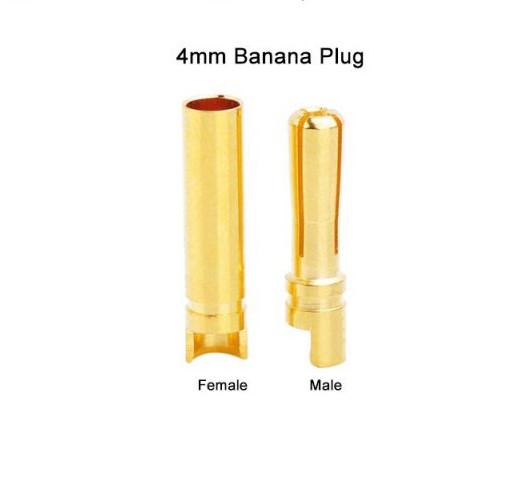

Nontoxic ESC Banana Plug Connectors 4mm Female Male For RC Battery

4.0mm Gold Plated Bullet Connector For RC Battery ESC And Motor Helicopter Boat Quadcopter FPV Drone Toys

Specifications

Product Description

4.0mm Female Male 4mm Gold Plated Bullet Connector for RC battery ESC and motor helicopter boat Quadcopter Product

parameters: gold-plated Model GC4013-F/M 4mm banana plug

Product model : GC4013-F/GC4013-M

Material: brass plated 7um thick gold / 7U gold plated brass

Contact res.: 0.8m ohm

Rated current: 36a max. 70A

Pull / plug times: 1000 times

Recommended cable type: 12awg

Application:used to connect the brushless moto and ESC

Metal material: Copper

Product weight: 2.86g/pair

Product introduction

1. the design of the new male head shape, increase the contact surface area than ordinary 4.0mm banana plug can more current.

2. raw materials non-toxic lead-free, in compliance with the ROHS environmental standards.

3. plug gold plating 24K, thickness of 0.05 mu m, plug thousands of plating will not fall off. The thickness of the coating plays the role of protecting the plug to prevent oxidation and prolong the service life.

4. good electrical conductivity, stable, constant temperature, continuous discharge.

5. new tail wire slot, convenient welding wire.

item	value
Type	Charging Components
Gender	Male and Female
Age Range	14 Years & up
Use	Vehicles & Remote Control Toys
Place of Origin	China
Brand Name	Hexie
Model Number	4.0mm Banana Plug
Size	4.0mm
Product name	4mm Gold Bullet Connector
Application	RC FPV Airplanes Helicopter
Material	Gold plated brass
Weight	2.86/pair
Gender	Male/Female
Contact Resistance	0.8mΩ
Rated Current	36A
Instanous Current	70A
Recommended Cable	12AWG
Using Times	1000 times

Nontoxic ESC Banana Plug Connectors 4mm Female Male For RC Battery
